TITAN trailers with side walls use low-carbon high-strength alloy steel Q345 to manufacture the main beam, which has a higher load-bearing capacity and a service life of more than 10 years.
The main beam of the sideboard trailer with side walls is welded by automatic submerged arc welding. There is no interface between the upper, middle and lower plates of the main beam of the side wall trailer with walls in zambia, which ensures the integrity of the main beam and makes the main beam more durable. The front part adopts an internally reinforced double web design to prevent the deformation of the main beam.

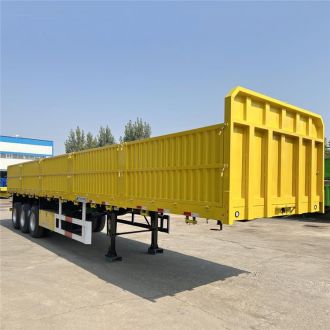

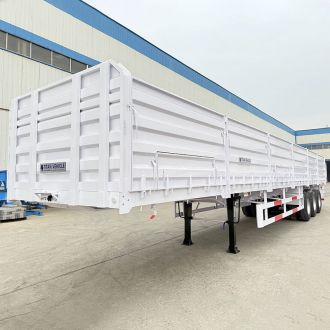

Triaxle Trailers with Side Walls Semi Trailer for Sale In Zambia - Sideboard Grain Trailer
Triaxle Trailers with Side Walls Semi Trailer for Sale In Zambia - Sideboard Grain Trailer
Triaxle Trailers with Side Walls Semi Trailer for Sale In Zambia - Sideboard Grain Trailer
2025 New Model Side Wall Trailer, Get 10% discount
Model: tri axle trailers with side walls

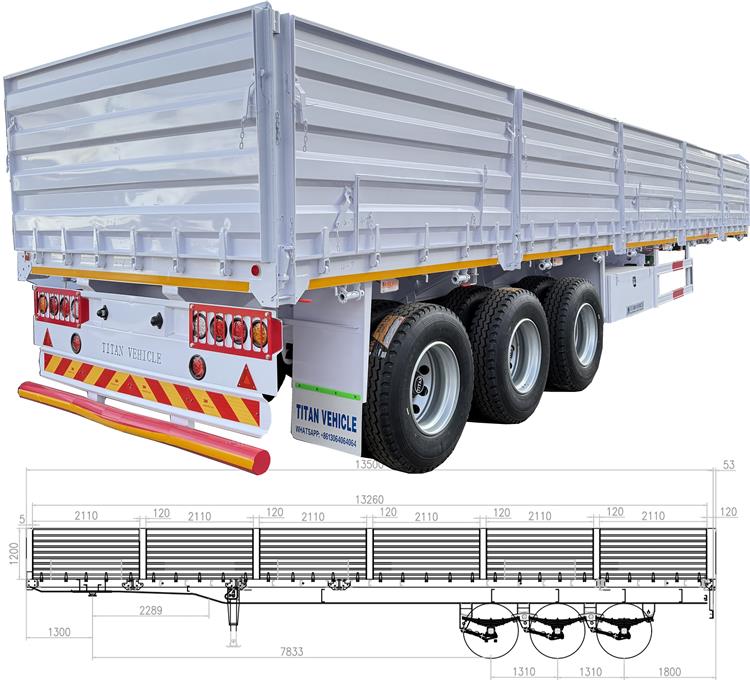

Dimension(mm): 12500x2800x3260mm
Trailer Sides: 1200mm

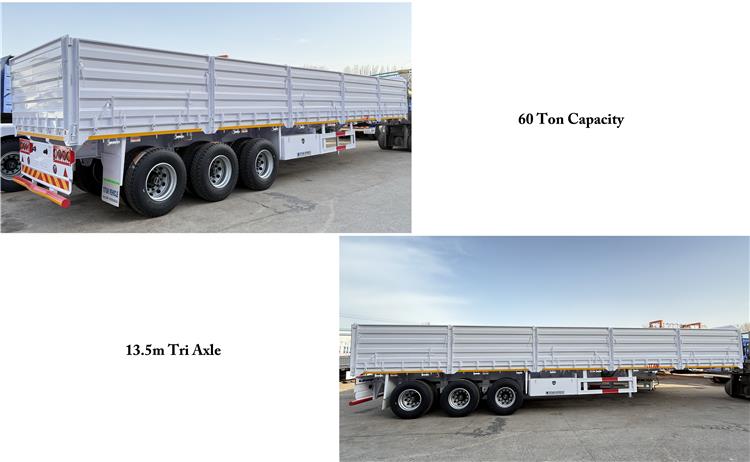

Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,TITAN Brand
Tire: 12 units, 12R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
2025 New Model Side Wall Trailer, Get 10% discount
The upper plate thickness of the main beam of trailers with side walls is 14mm and the width is 140mm, the lower plate thickness is 16mm and the width is 140mm, the middle plate height is 500mm and the thickness is 8mm. The bottom plate at the gooseneck of the main beam is reinforced with double plates, and the middle beam is also reinforced with double plates.
When overloaded, the deformation range of the sideboard trailer with side walls is small, and it is more convenient to use.

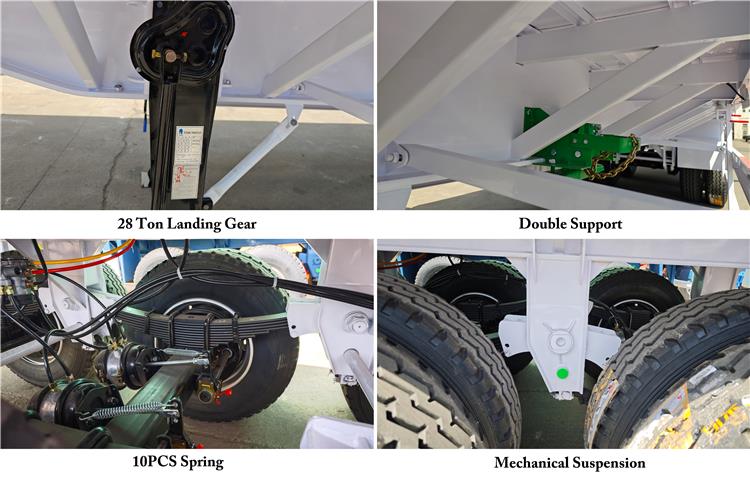

Side wall trailer with walls in zambia can be equipped with JOST brand landing gear, which is a world-renowned accessory with stronger bearing capacity and longer service life. The landing gear is buckled and thickened, the front and rear triangles are reinforced, the middle beam is reinforced with high-strength bending parts, and the legs are reinforced with through beams and diagonal braces.

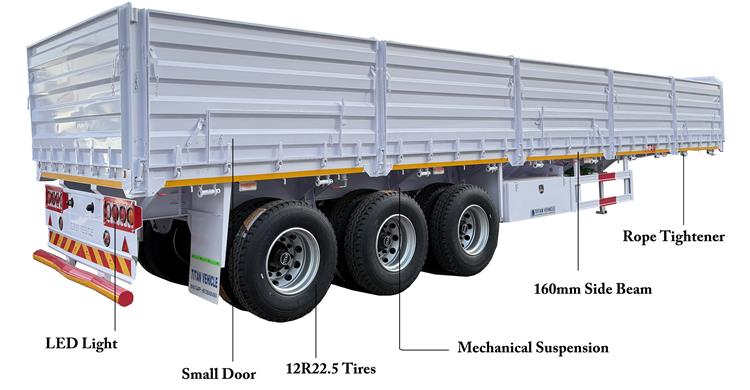

The thickness of the side beam of the grain trailer side wall semi trailer in zambia is 160mm channel steel, the through beam is 10Omm channel steel, diagonal braces support all through beams, and the spacing between these support frames does not exceed 50Omm, ensuring that trailers with side walls are not easily deformed.
The side beam is not cut at the turn lock to ensure the strength of the side beam.
The side wall of the sideboard trailer with side walls is made of thickened high-strength steel, using 5*5 high-strength square tubes, the side wall thickness is 1.5mm, and a reinforcing cross bar is added in the middle. The thickened side wall can ensure that the side wall trailer with walls in zambia will not expand and bend during long-term use, ensuring the service life of the side wall.
The door handles of grain trailer side wall semi trailer in zambia are all galvanized, beautiful and rust-proof, and are equipped with self-locking nuts to prevent falling off and loosening.
