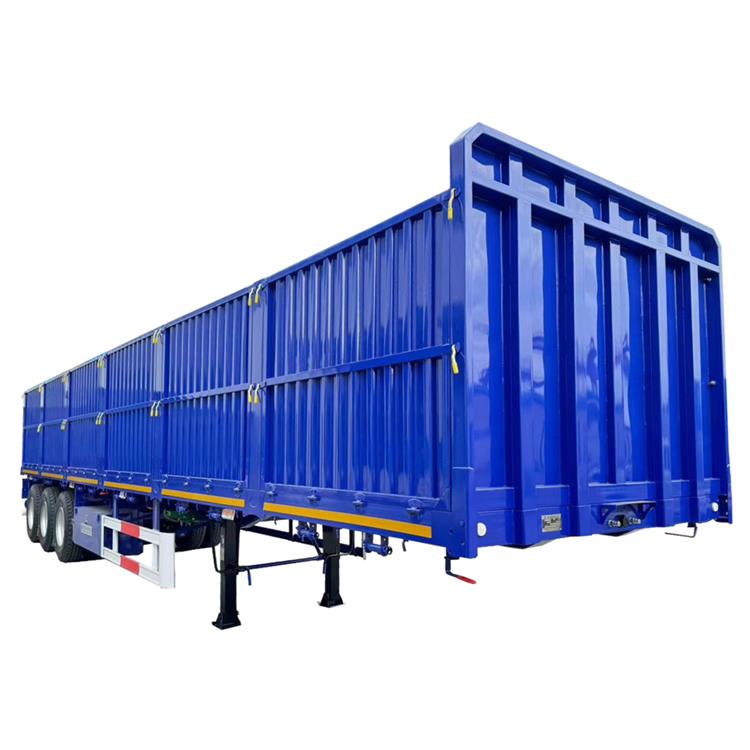

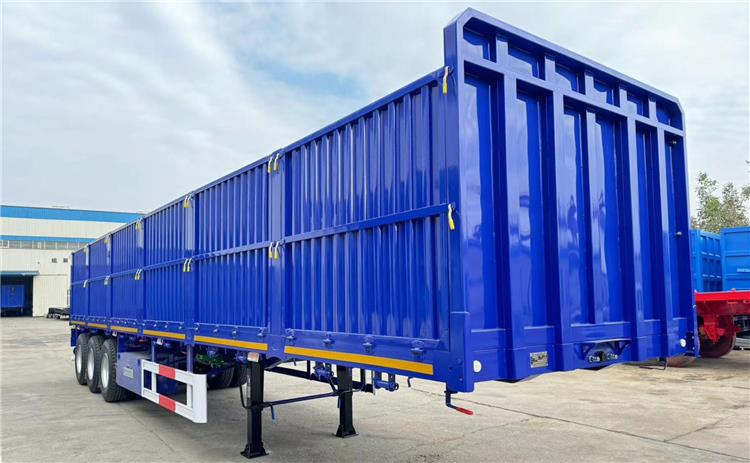

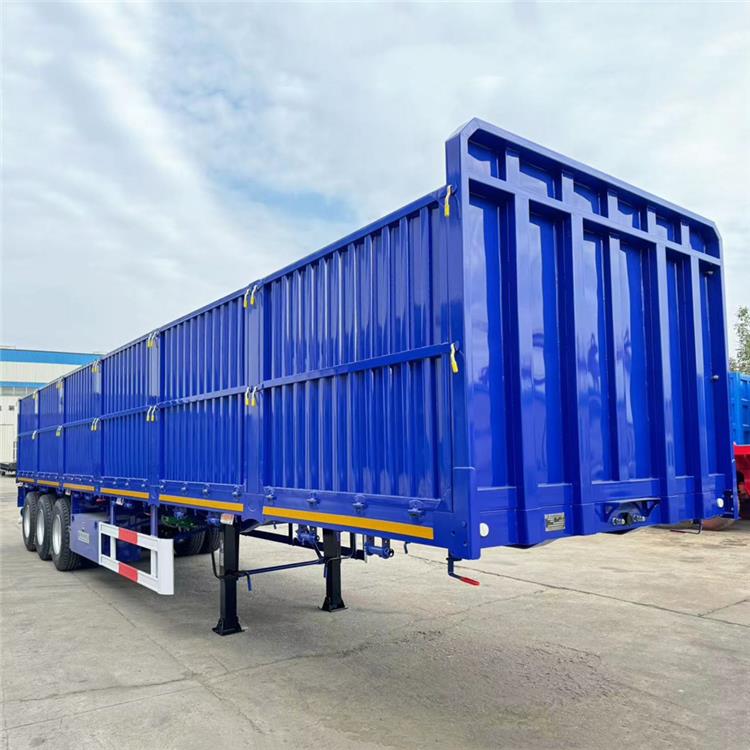

Flatbed trailer with side wall for sale in Zmabia The front baffle adopts a 7-vertical insertion design, and one front gear is welded with 7 high-strength square tubes, which is truly safe, strong, durable and beautiful.

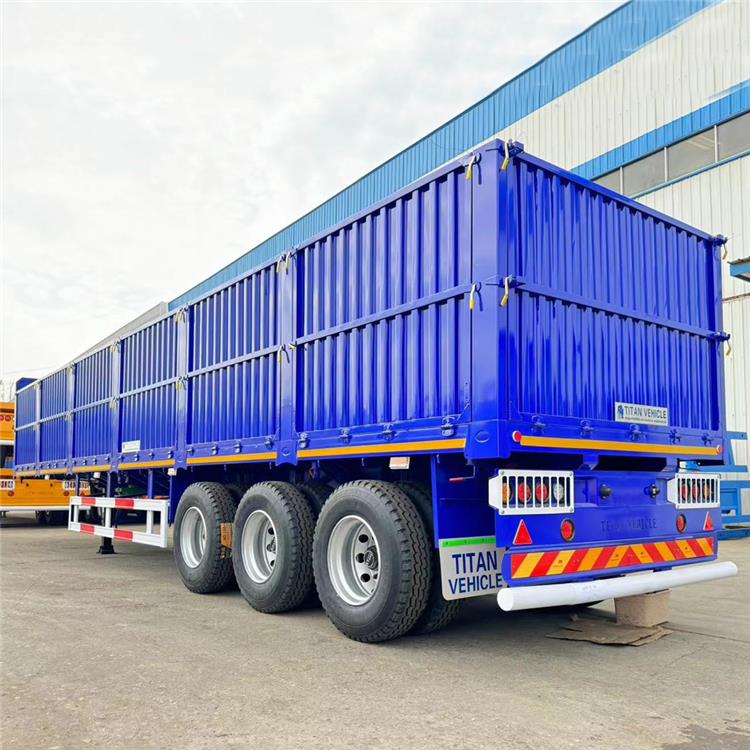

Flatbed trailer with side wall for sale in Zmabia adopts side panels with a height of over 80CM and a double door handle design to prevent the side panels from expanding and facilitate user operation. Flatbed trailer with side wall for sale in Zmabia The door handles are all galvanized door handles, which are beautiful and rust-proof, and come with self-locking nuts. Prevent it from falling loose.

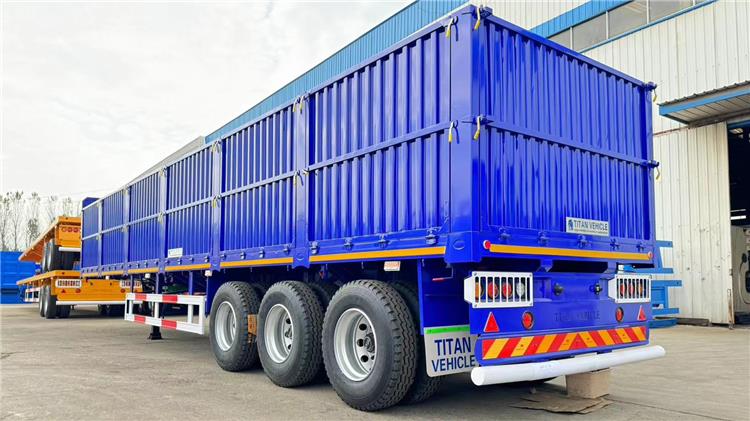

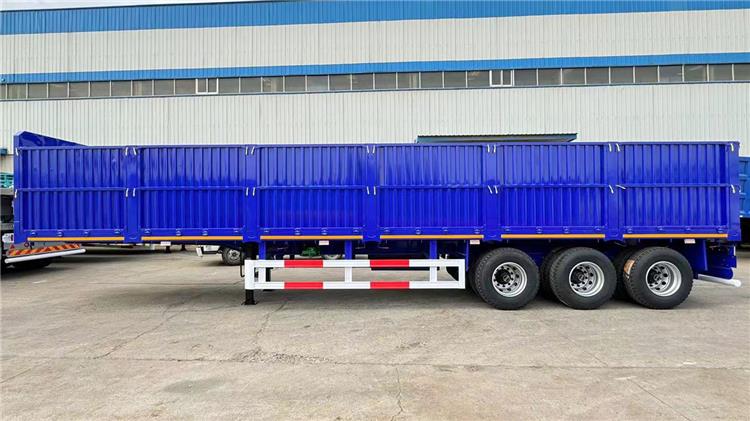

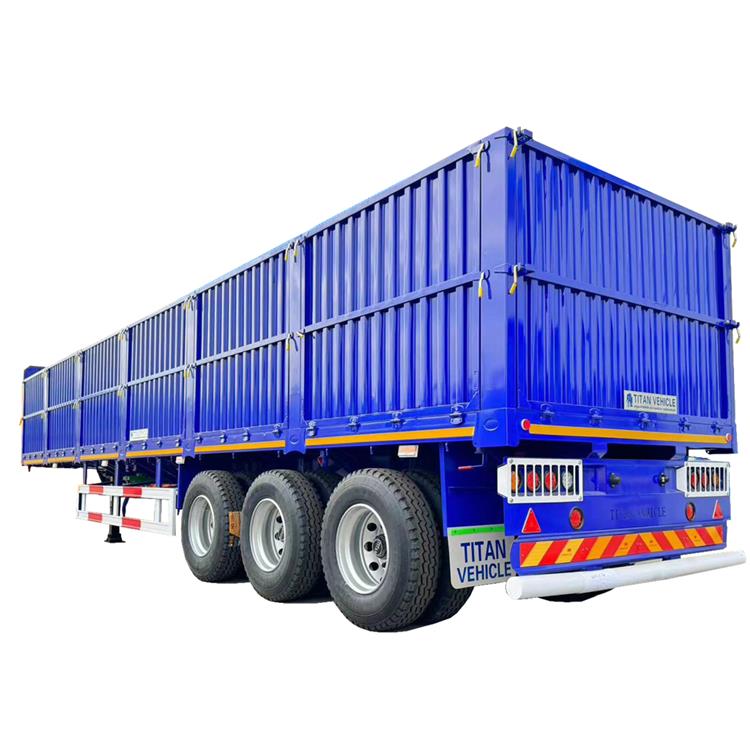

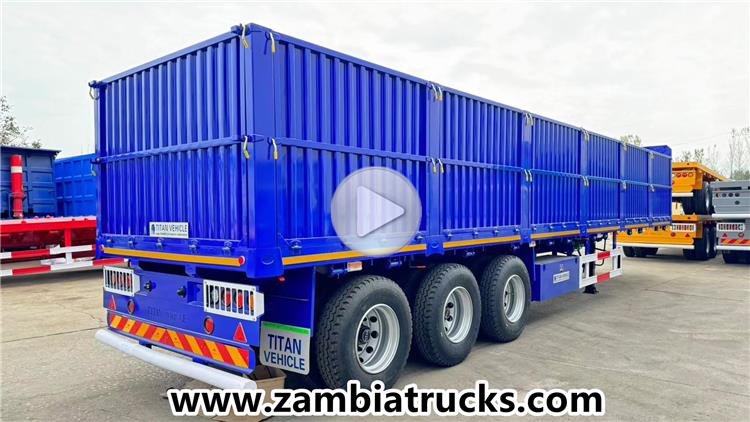

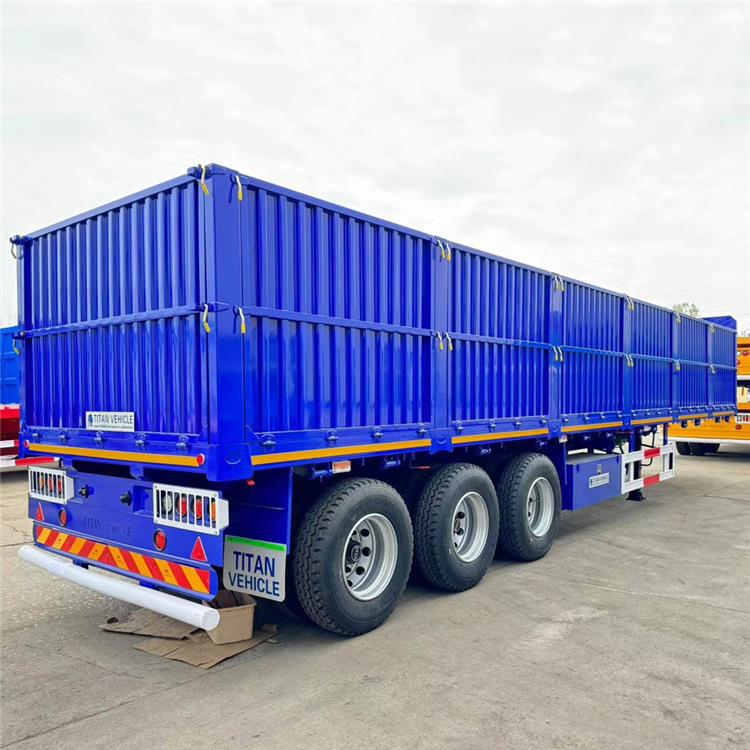

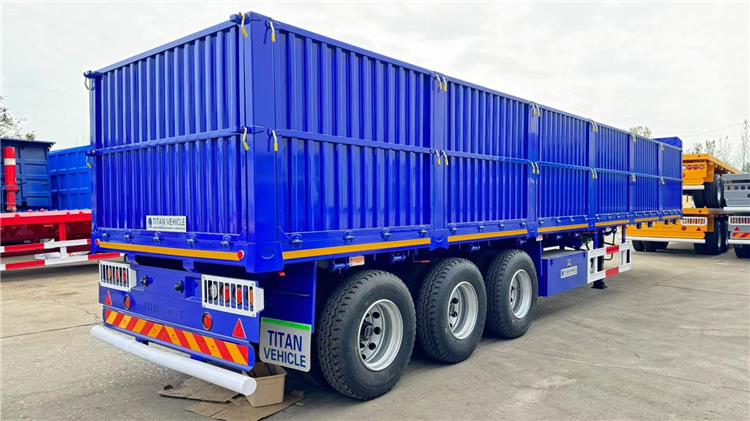

80 Ton Flatbed Trailer with Side Wall for Sale in Zambia Lusaka
80 Ton Flatbed Trailer with Side Wall for Sale in Zambia Lusaka
80 Ton Flatbed Trailer with Side Wall for Sale in Zambia Lusaka
80 Ton Flatbed Trailer with Side Wall for Sale in Zambia Lusaka

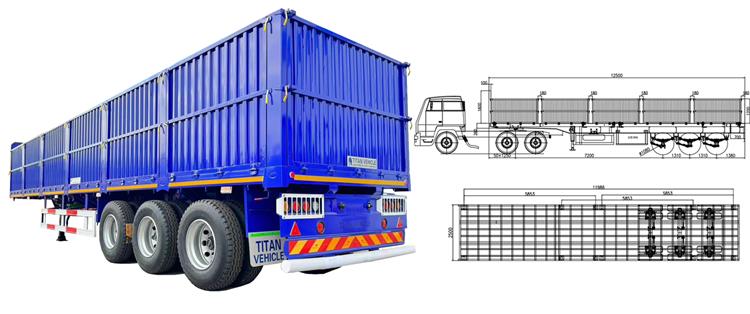

Dimension(mm): 12500x2500x3350mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Platform: 3mm-thick checkered plate
Trailer Sides: 1200mm, or box type sides
