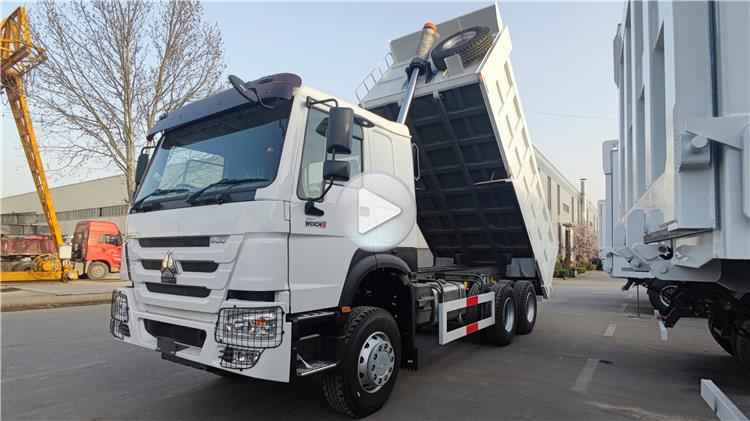

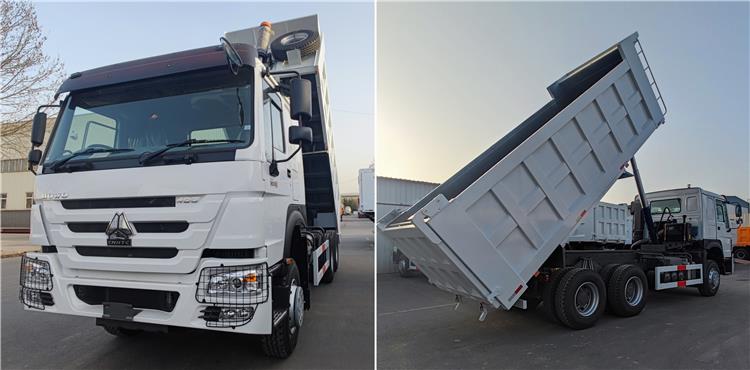

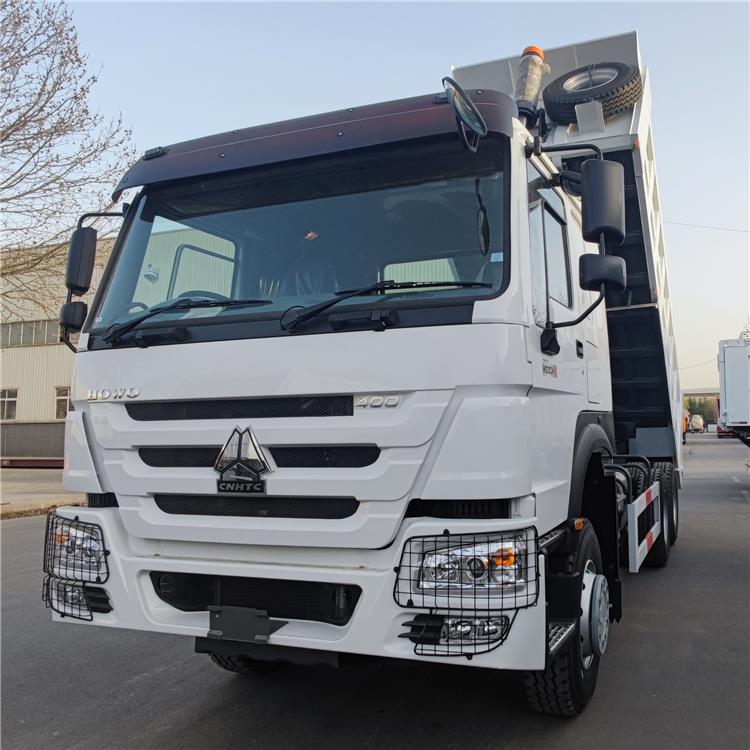

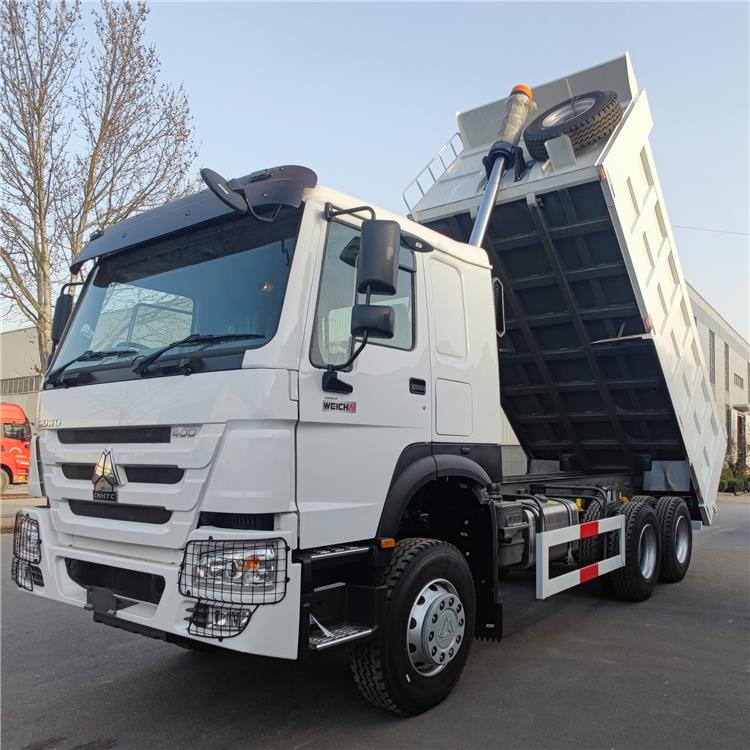

Sinotruk howo 6x4 tipper truck self-unloading design makes loading and unloading items easier and reduces manpower input. Sinotruk howo 6x4 tipper truck helps farmers transport crops, fertilizers, etc. in the fields, reducing labor intensity.
Howo trucks zambia is used to transport soil, plants and gardening materials to improve work efficiency.
Sinotruk Howo 6x4 Tipper Truck - Howo Trucks Zambia
Sinotruk Howo 6x4 Tipper Truck - Howo Trucks Zambia
Cab Model: HW76

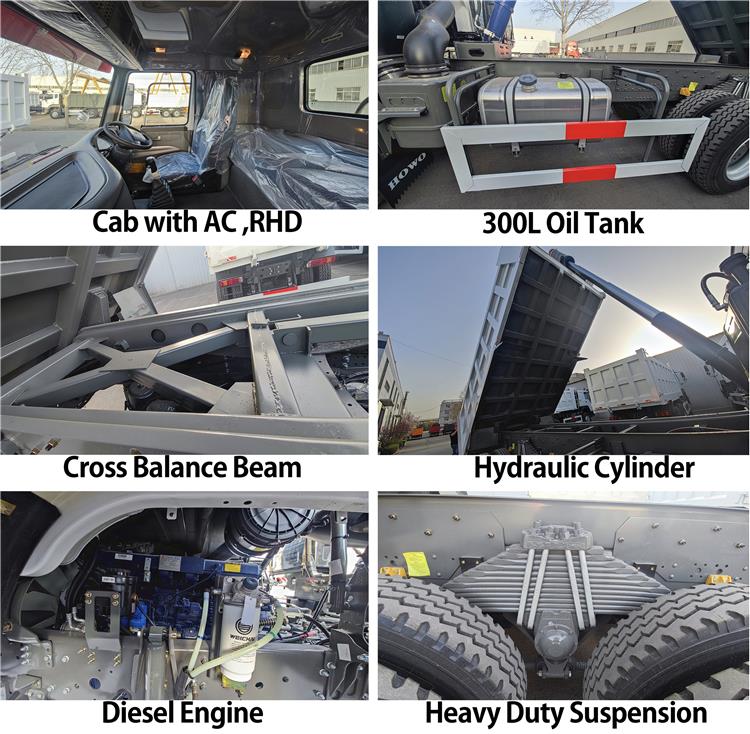

Type: HW76 extend cab, one berth, with A/C all steel forward control, 55°hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-drivers seat, heating & ventilation system, adjustable roof flap, with stereo radio/cassette recorder, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt.
Engine Model: WD615.69, WD615.47
Rated power: 400HP
Displacement: 9.726L
Type: 6 cylinder in-line with water cooling, turbo-charging & intercooling
Wheelbase: 1800+3500+1400mm, 1800+3800+1400mm 1800+4300+1400mm 1800+4600+1400mm
Cargo body size: 7000x2300x1500mm, 7300x2300x1500mm 7800x2300x1500mm, 8500x2300x1500mm
Clutch: Single- plate dry diaphragm spring clutch, diameter 430(C) mm, hydraulically operating with air assistance
Transmission: SINOTRUK HW series 10/12/16 speed transmission, 10 forward and 2 reverse
Front axle: Steering axle with double T-cross section HF9
Drive axle: Pressed axle housing, central single reduction HC16/AC16
Ratio: 5.73
Chassis Frame: U-profile parallel ladder type with section of 320×90×8 mm, all cold riveted cross members and reinforced subframe
Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension: 9+6 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Spare wheel carrier: with one spare wheel
Aluminum fuel tank: with 300 L fuel tank with locking fuel cap
Steering Germany ZF, hydraulic steering with power assistance
Brakes: Service brake: dual circuit compressed air brake
Parking Brake: spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS
Wheel & Types Rims: 8.0-20, 10 hole-steel
Types: 11.00-20 tube;
Option: 12.00-20 tube, 12.00R20 tube
Electrics Operating voltage: 24V, negative grounded; Starter: 24V, 5.4KW
Alternator: 28V, 1540W; Batteries: 2×12, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp
Sinotruk howo 6x4 tipper truck usually has a high load capacity and is suitable for transporting heavy items such as construction materials and bulk goods.

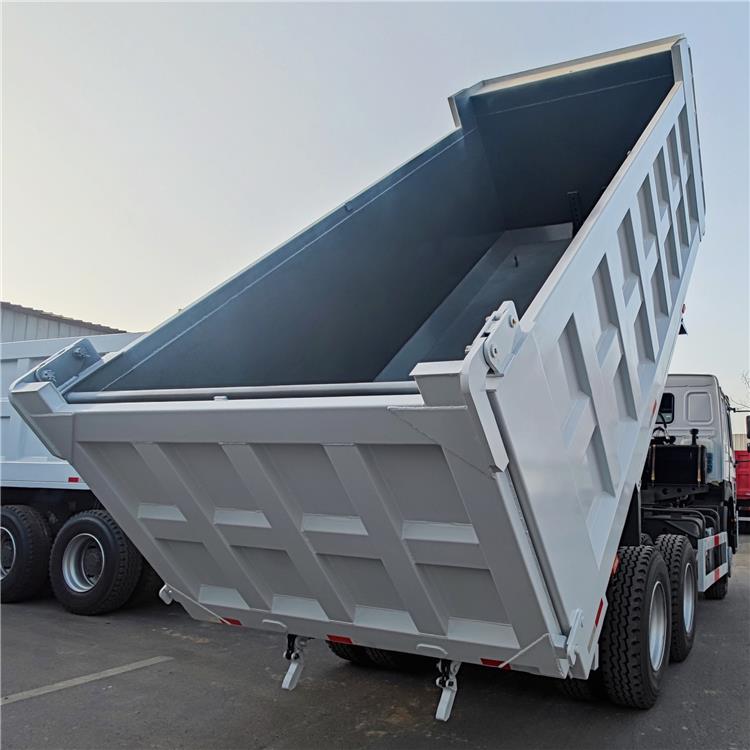

The self-unloading function of Sinotruk howo 6x4 tipper truck makes the unloading process quick and convenient, saving time and labor costs.
Howo trucks zambia is equipped with a powerful engine, providing good power performance and adapting to complex road conditions.
Sinotruk howo 6x4 tipper truck is made of high-strength materials, which enhances the ability to resist pressure and wear, and is suitable for long-term high-intensity use.
Howo trucks zambia are usually equipped with a humanized cockpit design to improve driving comfort and safety.
