4 axle 100 ton excavator trailer use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.
We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the 100t lowbed trailer for sale.

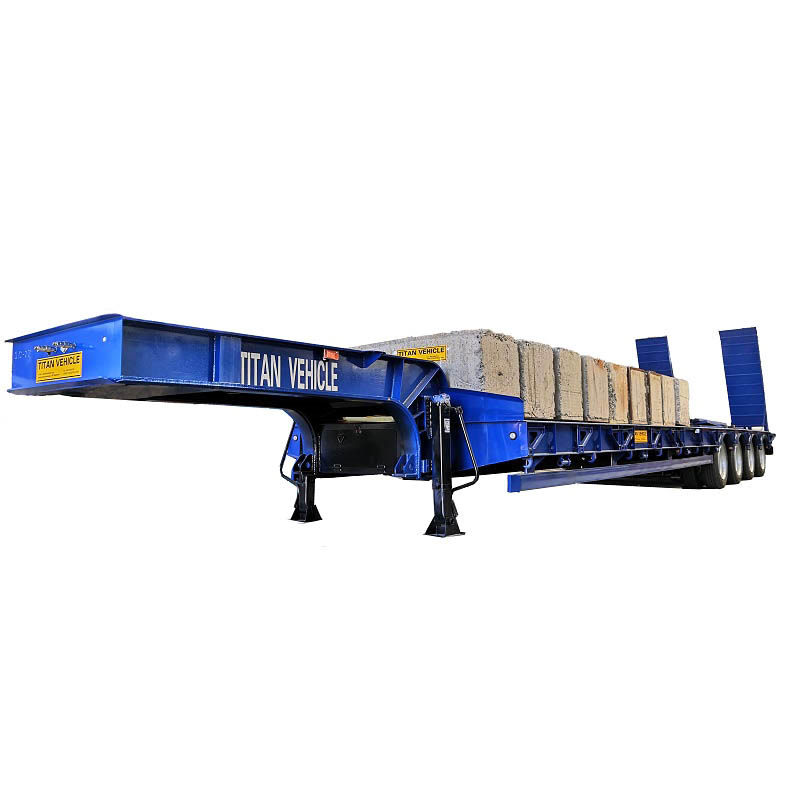

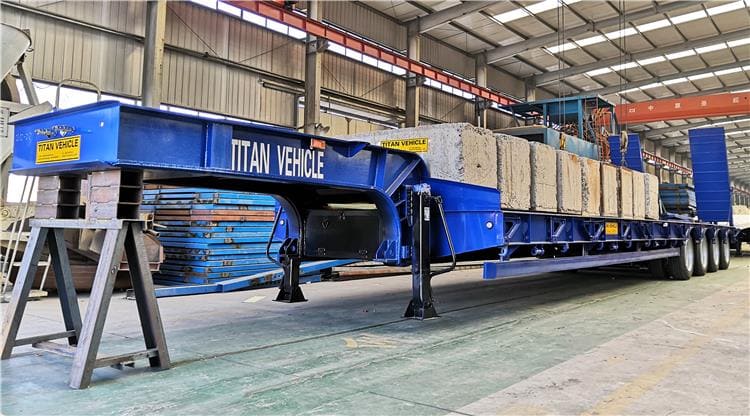

Heavy Equipment Trailer | 4 Axle 100T Lowbed Trailer for Sale in Kenya Kisumu
Heavy Equipment Trailer | 4 Axle 100T Lowbed Trailer for Sale in Kenya Kisumu
Heavy Equipment Trailer | 4 Axle 100T Lowbed Trailer for Sale in Kenya Kisumu

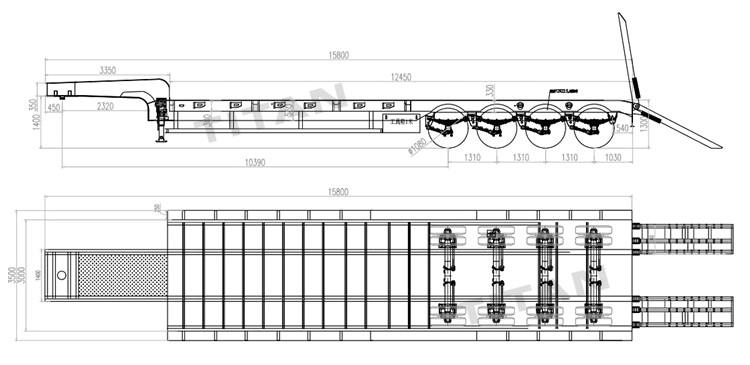

Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate

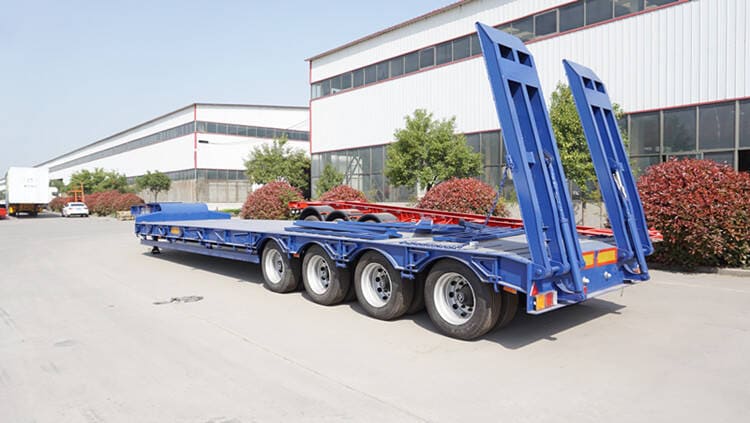

Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.

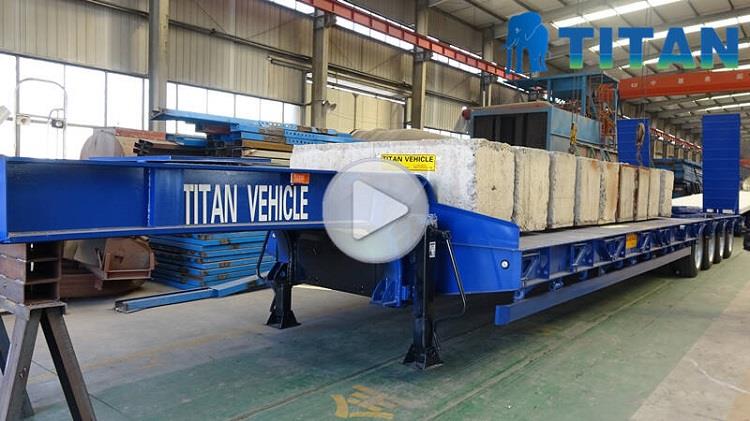

4 Axle 100 Ton Excavator Trailer details display video
