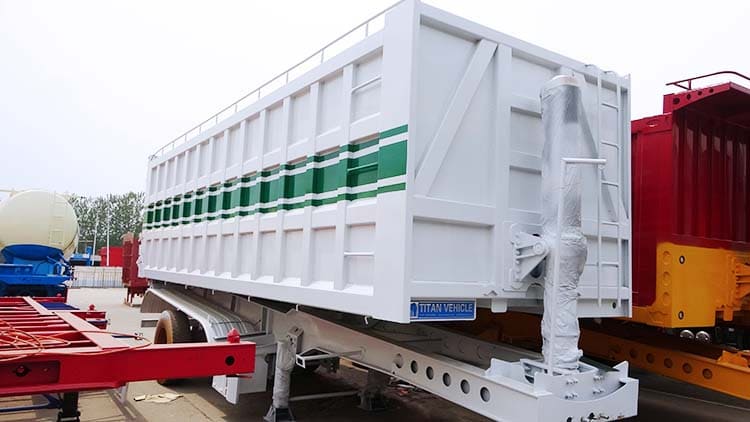

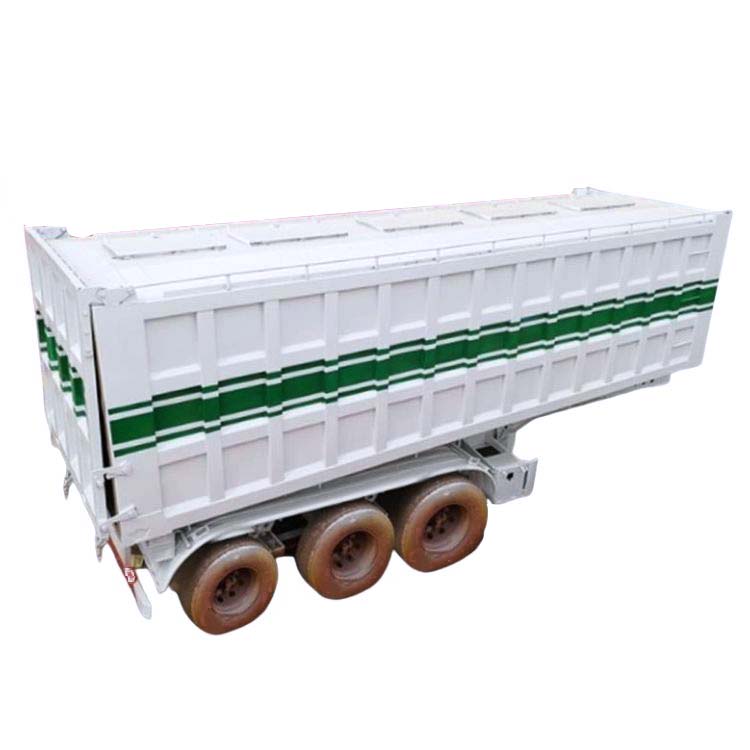

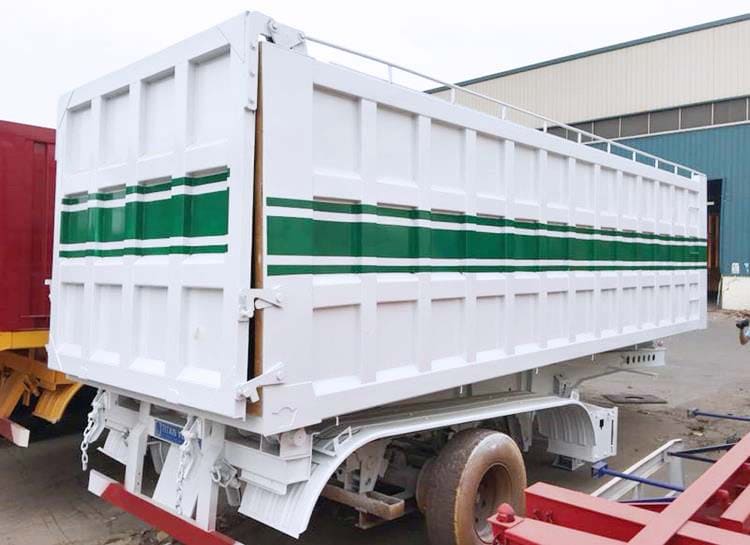

The 3 axles 40 cubic rock dump trailer is very efficient at transporting and unloading coals. Limestone, sand, and other loose materials in bulk. hydraulic tipper semi trailer can be custom designed according to customer specific requirements.
3 Axles 40 cubic rock dump trailer cylinders are available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.
Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer with Lower Prices in Kenya
Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer with Lower Prices in Kenya
Semi Dump Trailer | 3 Axles 40 Cubic Rock Dump Trailer with Lower Prices in Kenya
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 40 Cubic
End plate: 8mm

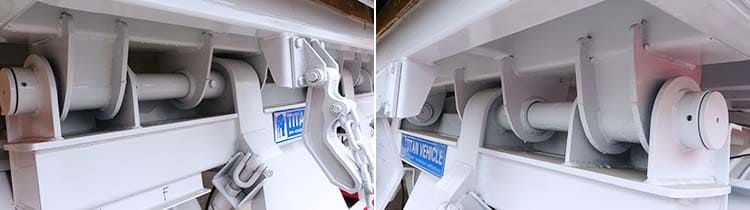

Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set

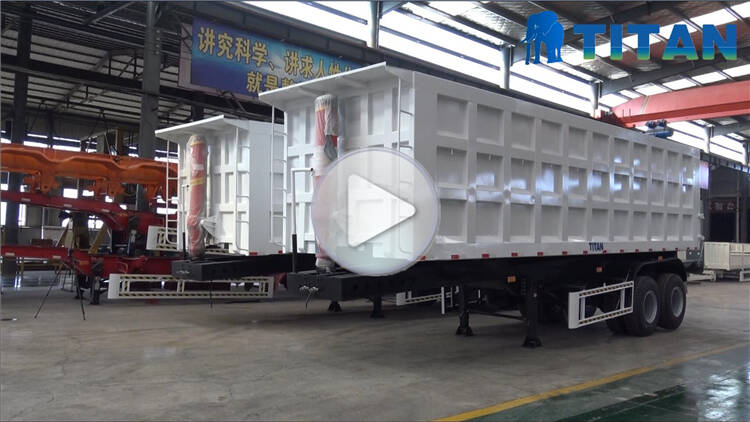

Through the video below, you can learn about different types of tipper semi trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer. And the process, testing, packaging and customer feedback, etc.
