Kenya Sinotruk adopts high strength steel material to manufacture the flatbed semi trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
To make sure the service life of the 3 axle flatbed semi trailers, all the spare parts we adopt are World Famous brand.
3 Axle 40 Ft Flatbed Semi Trailer for Sale Near Me in Kenya Nairobi
3 Axle 40 Ft Flatbed Semi Trailer for Sale Near Me in Kenya Nairobi
Model: 3 axle flatbed semi trailer

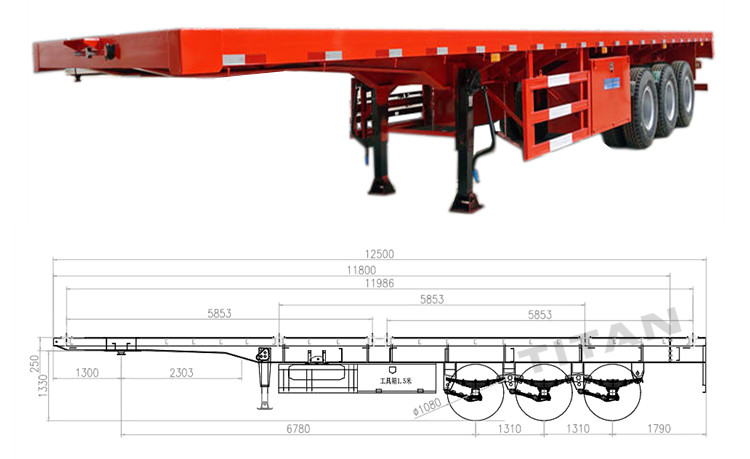

Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Transport: 20ft, 40ft container
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. Kenya Sinotruk uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Also the flatbed semi trailer for sale floor is checker plate, this will keep the other bulk cargo more stable.
3. Durable mechanical widened spring suspension, make sure the stable and safety.
4. Polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
5. Hight Quality container locks, make sure the stable and safety of the loads.

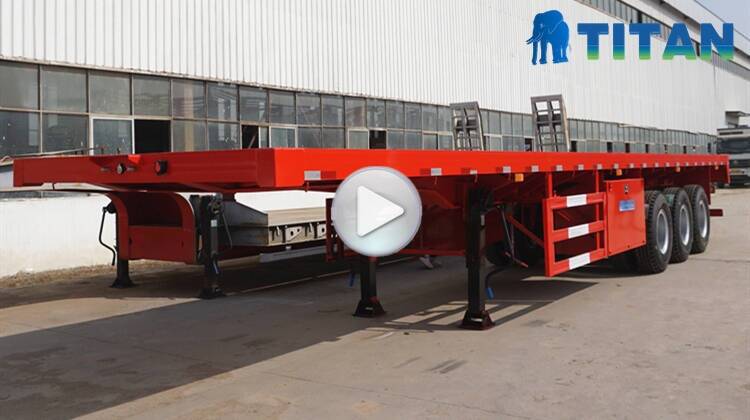

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.
Welcome to leave your inquiry!
We will provide more details, price, catalog, drawing, videos for you!
