Kenya Sinotruk removable gooseneck trailer for transport excavator and construction equipment, large machinery transportation.
4 axle 150 ton removable gooseneck trailer with dolly main beam of it is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. Kenya Sinotruk removable gooseneck lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
What ia a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale
What ia a Removable Gooseneck Trailer | 150 Ton Removable Gooseneck Trailer for Sale
Kenya Sinotruk can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton. To meet your transport needs and your local regulations, we can customize different configuration removable detachable gooseneck lowboy for you.
Overall dimension：17900mm * 2500+250*2mm *2200mm(platform 800mm)
Loading capacity: 150 ton
Axles：4 axles with 2 axles dolly
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

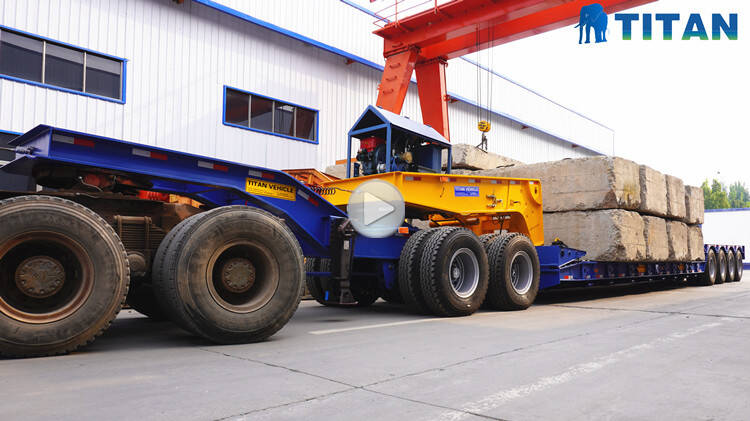

4 axle 150 ton detachable gooseneck lowboy trailer testing video display
